Every home has a hidden network of systems that keep it running smoothly, from the roof over your head to the wiring that powers your appliances. When homeowners plan renovations or additions without considering these systems first, they often end up with beautiful spaces that create real functional headaches later. Designing around your home’s infrastructure needs, rather than against them, saves money, prevents damage, and makes daily life easier.
This guide walks through the key systems you should map out before picking paint colors or furniture layouts.
Start With a Full Infrastructure Map
Before you sketch out a new layout or knock down a wall, take stock of everything running through your home’s floors, walls, and ceilings. This includes plumbing lines, electrical circuits, HVAC ductwork, and any fuel lines feeding your furnace or water heater. Don’t forget less obvious systems like low-voltage wiring for security or networking, dryer vents, and sump pump discharge lines, since these are just as easy to damage during a renovation.
Pull permits and blueprints if you have them, but verify accuracy with a stud finder, outlet tester, or a borrowed thermal camera, since older homes often deviate from original plans. If you’re planning significant demolition, a licensed electrician or plumber can trace lines in an afternoon for a few hundred dollars — a small price compared to the cost of hitting a pipe or wire blind.
A clear map prevents costly surprises during construction and helps you avoid boxing in equipment that needs regular access for maintenance, such as water heaters, HVAC air handlers, and electrical panels. It also gives you a reference point for future projects, so you’re not repeating this discovery process every time you want to update your home.
- Locate your electrical panel, note its amperage capacity (100, 150, or 200 amps), and check how many open breaker slots remain for future circuits
- Identify main water and gas shutoff locations, and confirm every household member knows how to operate them in an emergency
- Trace ductwork paths through walls, ceilings, and floor cavities, marking supply and return runs separately since they often follow different routes
- Mark access points for plumbing cleanouts, vent stacks, and sewer lines so they stay reachable after any remodel
- Note load-bearing walls and structural beams, since these limit where openings or infrastructure rerouting can happen
- Flag areas where past renovations may have hidden infrastructure, such as capped pipes, rerouted wiring, or sealed-off vents
- Check attic and crawlspace access points, as these often double as hidden routes for cables, ductwork, or plumbing lines
Planning Space Around Roof Access and Ventilation
Your roof does more than shed water; it also houses ventilation systems, skylights, and sometimes solar equipment that need clear access for inspection and repair. When designing an addition or finishing an attic space, it’s worth consulting roofing contractors early so new construction doesn’t block soffit vents or create awkward roof valleys that trap debris and moisture. A well-informed local roofer can also flag structural load issues before you commit to heavier materials like tile or slate.
Attic conversions are especially tricky because they interact directly with roof framing and insulation. If you’re turning unused attic space into a bedroom or office, make sure the plan preserves proper airflow and doesn’t compromise the roof’s ability to breathe. Skipping this step often leads to trapped moisture, mold, and premature shingle failure.

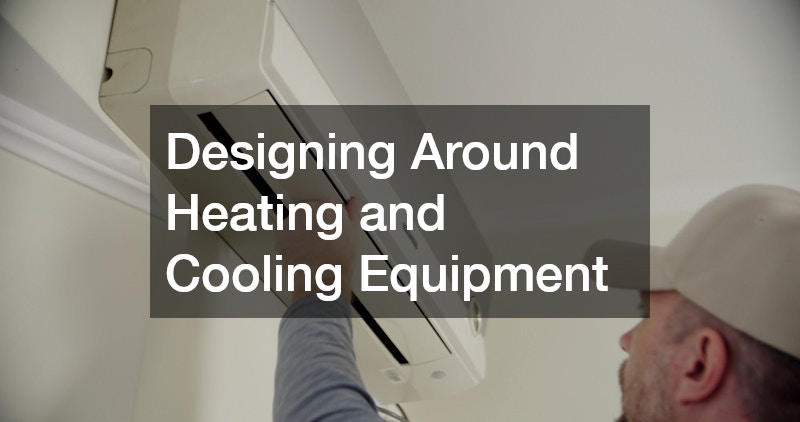

Designing Around Heating and Cooling Equipment
Mechanical rooms and closets housing your furnace, air handler, or heat pump need more than just a hidden corner; they need clearance for airflow, filter changes, and future repairs. When planning a renovation, leave enough space around this equipment so a technician performing routine HVAC Service doesn’t have to crawl over stored boxes or squeeze past shelving. Cramped mechanical spaces also trap heat and reduce equipment lifespan.
If your furnace is older or already showing signs of strain, factor that into your design timeline. Scheduling local furnace repair before a major renovation begins can prevent a breakdown mid-project, especially if construction dust or temperature changes stress an aging system. Building a slightly larger utility closet now can save you from ripping out finished walls later when equipment needs replacing.
Accounting for Fuel Storage and Delivery
Homes that rely on oil heat need a design that accommodates tank placement, fill access, and delivery truck routes. If you’re renovating a basement or adding a driveway extension, make sure the path for residential heating oil delivery remains clear and unobstructed. Tanks also need proper clearance from walls and combustible materials, so this should be settled early in the planning process rather than worked around after the fact.
- Keep at least a few feet of clearance around oil tanks for inspection
- Ensure delivery trucks can access the tank without navigating tight turns
- Plan landscaping so shrubs or fences don’t block the fill pipe
- Consider future tank replacement when designing enclosed spaces
Building in Space for Electric Vehicle Charging
As more households add electric vehicles, garages and driveways need to accommodate charging equipment without becoming cluttered or unsafe. Planning ahead for home EV charger installation means considering where your electrical panel sits relative to the parking area, since long wire runs can add significant cost—often $4 to $10 per foot once conduit, labor, and permitting are factored in. A Level 2 charger typically requires a dedicated 240-volt circuit rated for 40 to 60 amps, so it’s worth confirming your panel has open capacity before committing to a layout.
It also helps to think about weatherproofing if the charger will be mounted outdoors rather than in an enclosed garage. Outdoor units should carry a NEMA 3R or 4 rating to withstand rain, dust, and temperature swings, and mounting height matters too—most manufacturers recommend 18 to 48 inches off the ground for easy cable access.
Finally, leave a few extra inches of clearance around the charger for cable management hooks or a wall-mounted holster, which keeps cords off the floor and reduces tripping hazards in tight garage spaces.
Even if you’re not ready to buy an electric vehicle yet, running conduit during a larger renovation is far cheaper than retrofitting later. A dedicated 240-volt circuit rated for at least 40-50 amps covers most Level 2 chargers on the market, and electricians typically recommend a 1-inch conduit so you have room to upgrade the wire gauge later without repulling the whole line. Many homeowners choose to rough in this wiring during a garage remodel so the actual charger can be added whenever it makes sense financially.
It’s also worth confirming your electrical panel has the capacity to support the new circuit, since older 100-amp panels are often maxed out once you factor in HVAC, water heaters, and kitchen appliances. If capacity is tight, a panel upgrade to 150 or 200 amps during the same renovation is far less disruptive than doing it as a standalone project later. Installing a NEMA 14-50 outlet instead of hardwiring directly to a charger also adds flexibility, since it lets you swap charger brands or even power other high-draw equipment like a welder or RV.
This kind of forward planning avoids tearing into finished walls, drywall patching, and repainting down the road. It’s also worth checking local permit requirements early, since many municipalities require an inspection for new 240-volt circuits regardless of whether a charger is installed immediately.
Making Basement Spaces Work Harder
Basements often hold the sump pump, water heater, electrical panel, and sometimes the furnace, making them one of the most infrastructure-dense areas of the home. A skilled basement contractor can help design a layout that carves out livable square footage while keeping all mechanical systems fully accessible. This means planning clearances of at least 30 inches in front of electrical panels to meet code, and leaving removable panels or unobstructed pathways around water heaters and furnaces for routine servicing.
This balance is especially important in homes prone to flooding, where sump pumps and drainage systems need to remain easy to inspect. A contractor familiar with local moisture patterns can position storage, flooring materials, and even framing to minimize water damage risk while still creating usable space.
Smart layouts often use strategic zoning: building a stud wall or half-partition around utilities rather than fully enclosing them, which preserves airflow and access while visually separating mechanical areas from a finished rec room, home gym, or guest suite. Adding labeled shut-off valves and accessible junction boxes further ensures that future repairs won’t require tearing into finished walls.
- Frame around, not over, critical shutoffs and panels — leave at least 30 inches of clear access width for electrical panels per code, and 24 inches for water shutoffs
- Use removable panels (magnetic, hinged, or clip-in) to disguise access points like cleanouts and valves without permanently sealing them off
- Elevate finished flooring slightly (a ½ to 1-inch subfloor gap with a vapor barrier) to protect against minor water intrusion from small leaks or seasonal dampness
- Choose flooring materials like luxury vinyl plank or sealed concrete near sump pumps and floor drains, since they tolerate occasional moisture better than carpet
- Keep humidity control equipment reachable for filter changes, ideally with 2-3 feet of clearance in front of the unit
- Label breaker boxes, shutoff valves, and dehumidifier filters clearly so future homeowners or contractors can find them quickly
- Position shelving or storage units on wheels or slides near infrastructure zones so they can be moved aside instead of permanently blocking access
Coordinating Siding and Exterior Upgrades With Utility Lines
Exterior walls often hide electrical conduit, dryer vents, hose bibs, gas line access points, and cable or telephone junctions that need to remain functional after a facelift. Before starting an exterior renovation, it helps to walk the property with a local siding contractor to identify every penetration point that needs to be preserved or relocated. Mark each one with painter’s tape or a photo log so nothing gets missed once installation crews start moving quickly.
Pay special attention to dryer vents and bathroom exhaust fans, since these are commonly boxed in or crushed flat when new siding panels go up. Hose bibs and exterior electrical outlets may need short extension nipples installed so they sit flush with the new wall thickness, especially if you’re adding rigid foam insulation that adds an inch or more of depth. HVAC line sets and low-voltage wiring for security cameras or doorbells also deserve a spot on the walk-through checklist.
This prevents the frustrating scenario of finishing a beautiful new exterior only to discover a vent was sealed over, an outlet is now recessed too deep for its cover plate, or a gas meter is suddenly blocked from technician access.
Exterior upgrades are also a good opportunity to improve insulation and address any moisture issues uncovered during the process. Removing old siding often reveals rotted sheathing, missing vapor barriers, or gaps around outlets and hose bibs where air and water have been sneaking in for years. Adding a layer of rigid foam insulation (R-5 to R-6 per inch) at this stage can noticeably improve energy efficiency without requiring a separate retrofit project.
Addressing these problems at the same time as siding work is more efficient than treating them as separate projects later, both in cost and in disruption to the home’s exterior. It’s also the ideal moment to double-check clearances around electrical meters, exterior outlets, and gas line penetrations, since siding thickness changes can affect code-required spacing. Coordinating with your utility provider before starting demolition helps avoid delays if a meter or service line needs temporary relocation.
Planning Garage Layouts Around Doors and Equipment
The garage is often an afterthought in home design, yet it typically holds the electrical panel, water heater, or HVAC equipment in addition to vehicles and storage. Working with a garage door contractor during a remodel ensures the new door size and placement won’t interfere with shelving, workbenches, or charging equipment you plan to add. Door track clearance is easy to overlook until you’ve already built storage that blocks it.
- Measure clearance needed for garage door tracks and springs
- Leave wall space free near the door opener for future smart home upgrades
- Position storage systems away from mechanical equipment access points
- Consider insulated doors if the garage houses temperature-sensitive systems
Designing Outdoor Living Areas Around Pool Equipment
Backyard pools come with their own infrastructure, including pumps, filters, heaters, and electrical connections that need protected, accessible housing. If you’re updating an aging pool, working with a pool renovation company early in the design process helps ensure new patios, decks, or landscaping don’t block equipment access. This is especially important if you’re adding features like a new heater or automated filtration system that require electrical upgrades.
Outdoor kitchens and lounge areas built near pools should also account for how equipment noise and clearance requirements affect the layout. Planning these zones with infrastructure in mind from the start prevents having to move expensive hardscaping later.
Conclusion
Thinking through your home’s infrastructure before finalizing any renovation plan pays off in fewer surprises, lower repair costs, and a layout that actually works for daily life. Take time to map out your systems, talk with qualified professionals early, and build flexibility into your design for future upgrades. A little planning now means your home will function as well as it looks for years to come.
